2 Heads SC6182

SC6182-UV

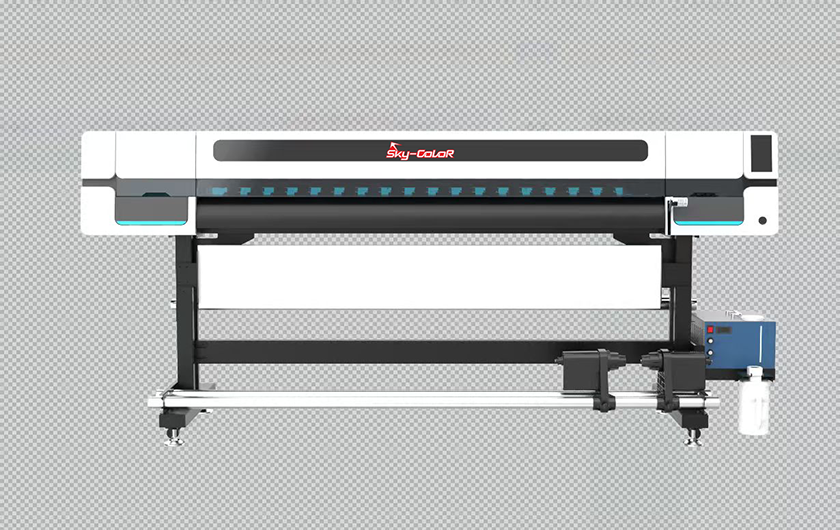

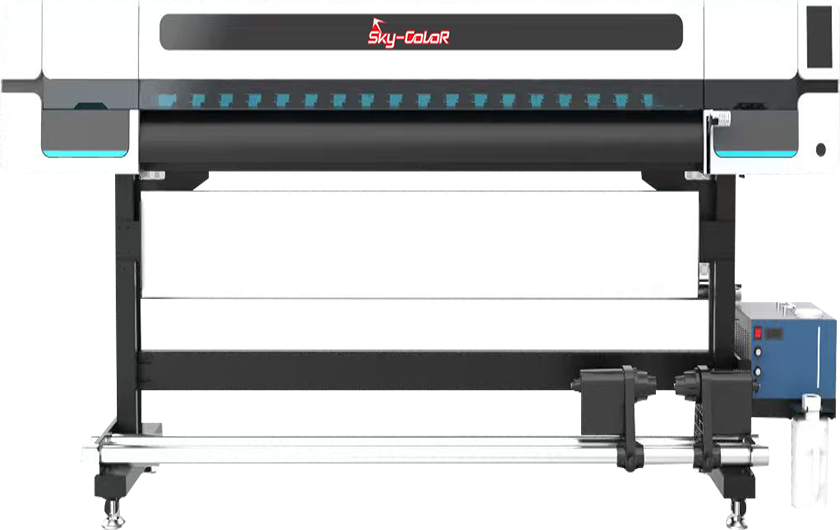

The Skycolor SC6182- UV printer is a 1.8m UV roll-to-roll printer that uses one or two Epson I3200-U1 printheads, CMYK+W colors, and is equipped with Japanese THK guide rails, an imported service and capping station, and Leadshine motors. In standard production mode, C+C: 2 printheads can achieve a throughput of 9m²/h, and in standard production mode, C+W: 2 printheads can achieve a throughput of 6m²/h. It is widely used for ultra-transparent PET film, backlight film, PET, transparent film, canvas, velvet, etc.
share:
Feature
LEADSHINE BRUSHLESS DC MOTOR
LEADSHINE BRUSHLESS DC MOTOR
CUTTING FUNCTION
CUTTING FUNCTION
AUTOMATIC FEEDING SYSTEM(OPTIONAL)
AUTOMATIC FEEDING SYSTEM(OPTIONAL)
CARRIAGE BASE HEATING FUNCTION
CARRIAGE BASE HEATING FUNCTION
TOUCH SCREEN TO CONTROLPRINTER FUNCTIONS
TOUCH SCREEN TO CONTROLPRINTER FUNCTIONS
AUTOMATIC CLEANING FUNCTION
AUTOMATIC CLEANING FUNCTION
Specifications
Model SC6182-UV
Printhead EPSON I3200-U1
Quantity:2
Resolution:3200DPI
Printing Speed

CMYK+W (2 Heads)

C+C Production Mode:14m²/h, Standard Mode:9m²/h
W+C Production Mode:9m²/h,Standard Mode:6m²/h
Print Width 1700mm
Colors C M Y K+W
Ink Type LED-UV Curing Ink
RIP Software Maintop, FlexiPRINT, Riin, ONYX, etc.
Printing Media Ultra-clear PET Film, Back lit film, PET, Transparent film, Canvas,Velvet Cloth,etc.
Print File Format BMP, TIF, JPG, PDF etc.
Computer Configuration OperatingSystem:Win7 and above; GPU: ATl Mobility Radeon;
TransmissionInterface:Giga-bit Ethernet Port;
CPU: IntelCorei7 3.0Hz above; Hard Disk:500G or more; RAM: 8G DDR4 or above
Standard Configuration Heating System: External Drying System
Feeding and Take-up System: Automatic Take-up System
Working Environment Temperature:15°c-30°c Humidity:35%-65%
Power Supply 50/60HZ; Machine PrintingPower: 1.2kw
Machine Size Printer:2850*730*1460mm Packing:2933*1025*640mm
Weight Gross Weight: 260KG Net Weight:220KG
