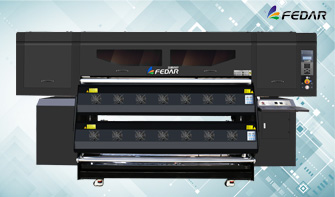

4 Heads H1

Eco Solvent Printer
Printer Head:   4*EPSON I3200-E1
Printer Resolution:  3200DPI
Printer Speed:  139sqm/h
Printer Width:  1800mm
Printer Ink:  Eco Solvent Ink
Printer Media: PP PVC,Vinyl,Backlit,Mesh,etc
RIP Software: Maintop, Photoprint,Onyx,etc.
Main Features
THK Guide Rail
Adopt THK mute linear guide, which makes the printer more stable, longer working life, lower noise.
THK Guide Rail
Improved Appearance
Improved appearance, more advanced, more useful buttons added, more convenient to operate.
Improved Appearance
High Quality Mainboard
Mainboard is composed of imported chips, 8-layer design for PCB board, more stable and more working time.
High Quality Mainboard
Wide Range Applications
Eco Solvent printer can print a variety of materials, such as car stickers, banner, vinyl sticker, etc.
Wide Range Applications
Printer Details
Ink Shortage Alarm
Ink Shortage Alarm
The ink cartridge is equipped with an ink shortage alarm system. When the ink is too low, a signal is sent to remind the user to add it in time.
American Press Roller
American Press Roller
Imported press roller, which can adjust the pressure individually to avoid material wrinkling and make the printing process go smoothly.
Secondary Ink Supply System
Secondary Ink Supply System
The secondary small ink cartridge is used to continuously supply ink to ensure smooth ink supply and improve work efficiency.
Constant Tension Take-up system
Constant Tension Take-up system
The constant tension take-up system is used to ensure that the material does not wrinkle and the material is more tidy.
Model H1 Eco Solvent Printer
Printhead Type:Epson I3200-E1
Printing Speed 2pass  139㎡/h
3pass  108㎡/h
4pass  82㎡/h
6pass  56㎡/h
Ink Type Eco-solvent Ink,Water-based Ink
Ink Color CMYK
Height of Head Print 2-5 mm (Variable)
Print Media PP PVC,Vinyl,Backlit,Mesh,etc
Media Feeding Method Roll to Roll, Leaf
Color Management ICC Based, Density & Curves Adjustment
Optional Device Intelligent Dryer, Auto Feeding and Take-up System, Anti-collision System
Computer System Windows7  Windows10
Data Transmission Port: Giga-bit Ethernet Port
Hard Disk: More than 500G, ATI Mobility Radeon,Memory 8G DDR4 above, CD-ROM: DVD ROM,
CPU: Intel i7 3.0GHZ above
Power Supply 50HZ/60HZ, 220V, 10A
Temp. 15-30℃
Humidity 35%-65%
Printing Width 1800mm
Machine Size 2840*820*1530mm
Weight 300kg
