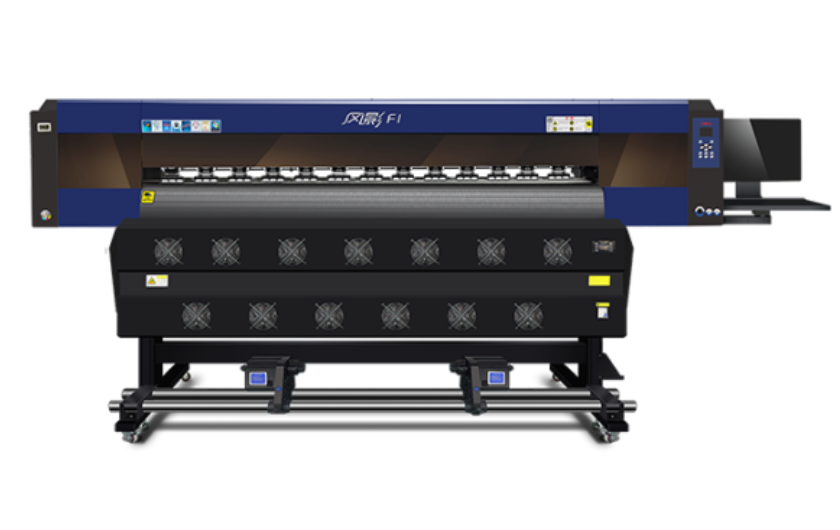

4 Heads F1

Eco Solvent Printer
Printer Head:   4*EPSON I3200-A1/E1
Printer Resolution:  3200DPI
Printer Speed:  139sqm/h
Printer Width:  1800mm
Printer Ink:  Eco Solvent Ink
Printer Media: PP PVC,Vinyl,Backlit,Mesh,etc
RIP Software: Maintop, Photoprint,Onyx,etc.
Main Features
Epson A1/E1 Printheads
4pcs Epson I3200-A1/E1 printheads, bright print colors and fast speed.
Epson A1/E1 Printheads
Leadshine Motor
High-quality stepping motor, linear decoding, high precision and small error.
Leadshine Motor
THK Guide Rail
Imported THK guide rail, high precision, no noise, the eco solvent printer runs more smoothly.
THK Guide Rail
Variety Software
Strong compatibility, can use a variety of printing software, such as Photoprint, Maintop, Onyx.
Variety Software
Printer Details
Two-level Ink Supply System
Two-level Ink Supply System
Two-level continuous ink supply system ensures stable ink supply and can be printed for a long time.
Drying system
Drying system
The intelligent drying system supports segmented drying to ensure worry-free pattern drying.
Imported Pinch Roller
Imported Pinch Roller
Fluorine rubber material to reduce influence of static electricity, and tightness of roller can be adjusted separately.
Take up system
Take up system
Dual-power fast take-up, the take-up system automatically stops working when printing is paused, saving energy consumption.
Anti-collision carriage plate
Anti-collision carriage plate
Prevent the printhead from being scratched, and you can easily adjust the height of the printhead position, which is convenient, fast, safe and efficient.
Highly integrated temperature control management system
Highly integrated temperature control management system
It can easily adjust the temperature of the platform and the wind power of the suction paper.
Work platform
Work platform
The accuracy can reach 5 wires, and multiple aluminum platforms are supported to ensure the flatness of the platform.
Built-in temperature and humidity display
Built-in temperature and humidity display
Built-in temperature and humidity display, the working environment and temperature can be clearly seen.
Model F1 Eco Solvent Printer
Printhead Type:Epson I3200-A1/E1
Printing Speed 2pass  139㎡/h
3pass  108㎡/h
4pass  82㎡/h
6pass  56㎡/h
Ink Type Eco-solvent Ink,Water-based Ink
Ink Color CMYK
Height of Head Print 2-5 mm (Variable)
Print Media PP PVC,Vinyl,Backlit,Mesh,etc
Media Feeding Method Roll to Roll, Leaf
Color Management ICC Based, Density & Curves Adjustment
Optional Device Intelligent Dryer, Auto Feeding and Take-up System, Anti-collision System
Computer System Windows7  Windows10
Data Transmission Port: Giga-bit Ethernet Port
Hard Disk: More than 500G, ATI Mobility Radeon,Memory 8G DDR4 above, CD-ROM: DVD ROM,
CPU: Intel i7 3.0GHZ above
Power Supply 50HZ/60HZ, 220V, 10A
Temp. 15-30℃
Humidity 35%-65%
Printing Width 1800mm
Machine Size 2940*925*1545mm
Machine weight 265kg
