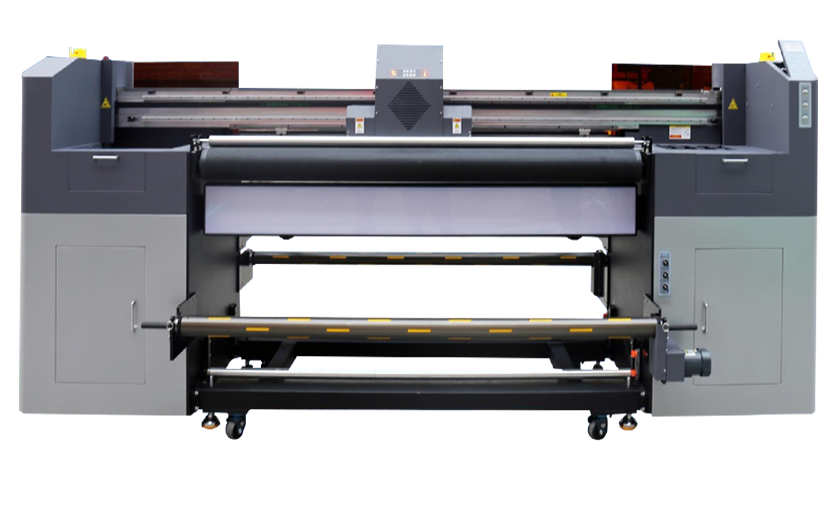

UV Hybrid Printer 1906

Feature

Using CMYK+W+CMYK 3-layer printing

Using CMYK+W+CMYK 3-layer printing, printing picture is more delicate.

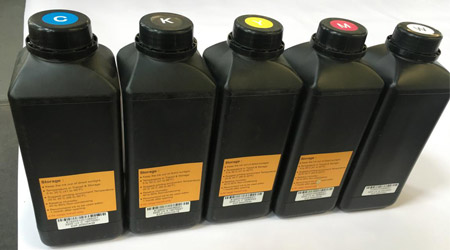

Using original UV ink, weak

Using original UV ink, weak smell , not pungent, and protects the environment.

Leakage protection device

It is equipped with a leakage protection device, makes printer run more safely.

Three-stage suction control system

Three-stage suction control system on platform can ensure smoothness of material adsorption.

High-speed silent ink chain

High-speed silent ink chain can effectively prolong the working life of mesh belt leather printer.

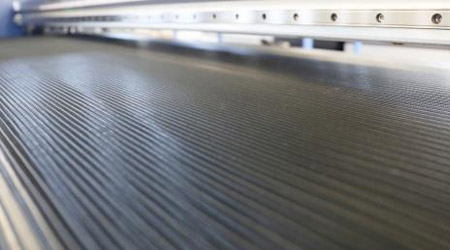

Roll-to-roll application, precise belt guide and pressure-free transmission

Roll-to-roll application, precise belt guide and pressure-free transmission to ensure printing effect.

Printer Details

THK Silent Linear Guide

No noise, ensure the stable operation of carriage and ensure the printing quality.

Anti-collision Carriage

Protect printhead during the printing process and reduce maintenance costs.

Liftable Capping Station

Automatic cleaning, automatic flashing and moisturizing function to prevent printhead clogging.

Multiple Print Modes

CMYK+W+CMYK, W+W+CMYK, double CMYK mode can be switched to print according to the needs.

Specifications

Model	1906-UV
Printhead	3-6 pcs Epson I3200-U1 Printhead
Printing Resolution	3200DPI
Printhead Properties	Automatic cleaning, automatic flashing and moisturizing function
Printing Speed	4 pass CMYK+W 15.6sqm/h
Printing Speed	6 pass CMYK+W 12.4sqm/h
Ink	Led-UV Curing Ink
Ink Color	CMYK+W+V
Printing Width	1900mm
Color Management	ICC Based; Density& Curves Adjustment
RIP Software	Maintop, Photoprint, Printfactory
File Format	TIFF,JPEG,PDF, etc.
Media	Leather
Feeding Method	Mesh Belt Feeding System
Applies	Light Film, Transparent Film, PET&PVC, Ultra-transparent Film and Other Decoration Materials
Operation System	Operating system: Win7 64-bit Win10 64-bit Hard disk: 500G or more (SSD is recommended), CPU: i7 processor, running memory 8G, graphics card: ATI independent 4G memory Port：USB3.0
Power Supply	50HZ/60HZ、220V、10A
Working Environment	TEMP.:20°C-30°C Humidity:35%-65%
Printing Method	Roll to Roll, Platform
Machine weight&size	WD1906 machine dimensions: 393016201830mm WD1906 extended platform packaging dimensions: 22455851252mm 1000KG
