1/2 Heads SC1181/SC1182

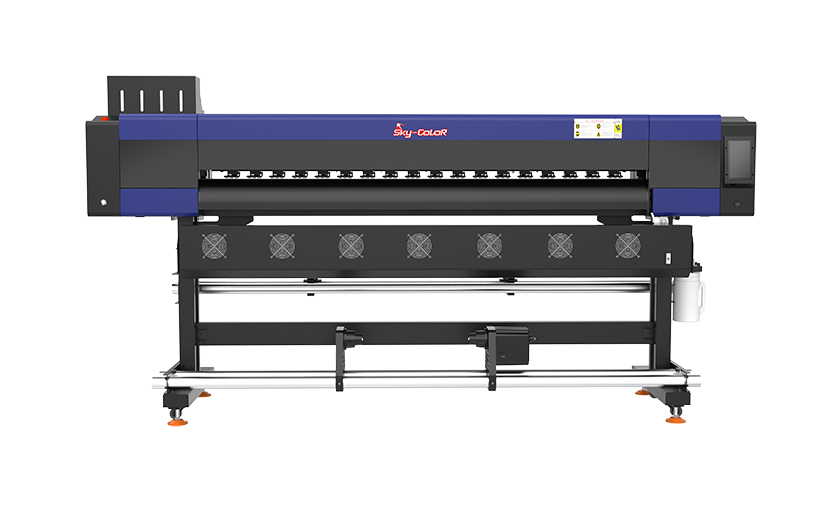

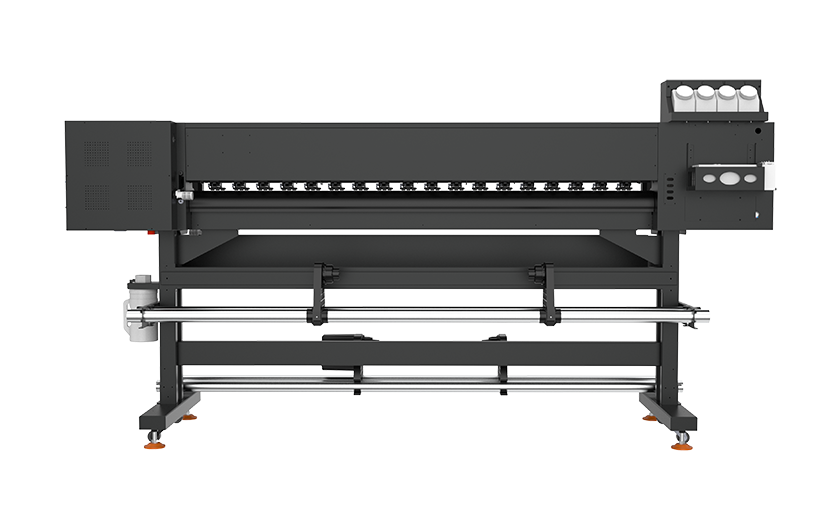

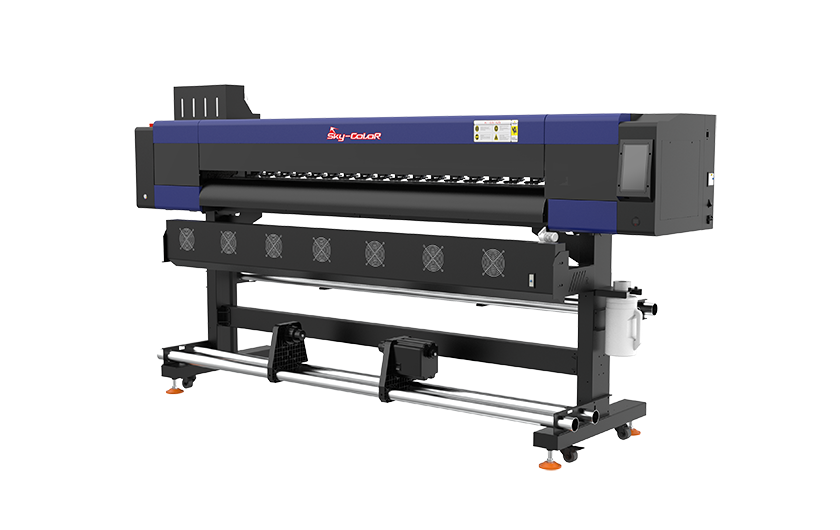

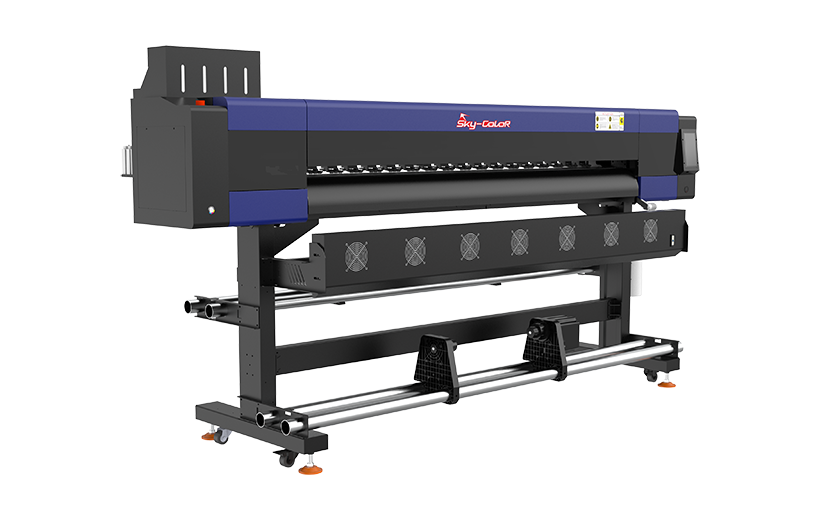

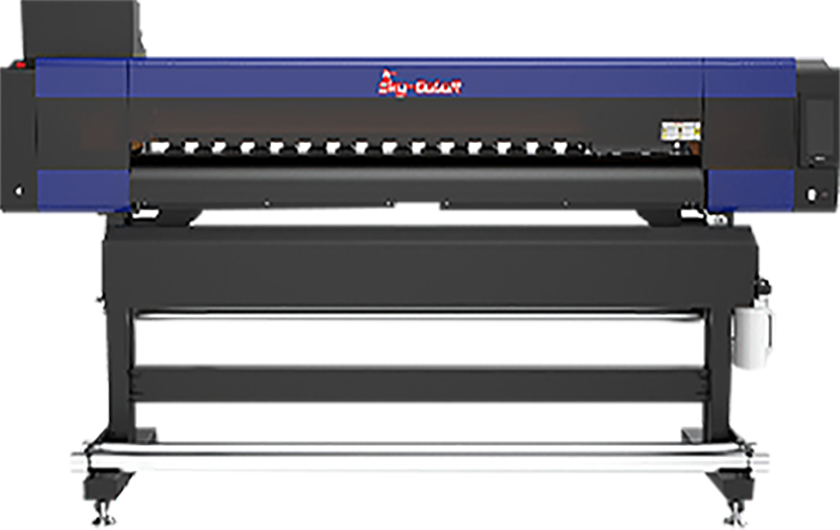

SC1181/SC1182 Eco Solvent Printer

Printer Head: 1/2*EPSON I3200-A1/E1
Printer Resolution: 3200DPI
Printspeed:
1 head: Production Mode:20㎡/h Standard Mode:15㎡/h
2 heads：Production Mode:40㎡/h Standard Mode:30㎡/h
Printer Width: 1800mm
Printer Ink: Eco Solvent Ink
Printer Media: PP PVC,Vinyl,Backlit,Mesh,etc
RIP Software: Maintop, Photoprint,Onyx,etc.

GET PRICE

SEND INQUIRY

Wechat:8617700639356

Whatsapp: +8617700639356

Main Features Printer Details Specification Related Videos Application Inquiry

Main Features

LARGE-CAPACITY INK SUPPLY SYSTEM

It provides four ultra-large capacity ink tanks,Each ink tube independently supplies ink to a row of nozzles,ensuring high-speed output of large areas with high-quality images.

LEADSHINE BRUSHLESS MOTOR

Bi-direction Leadshine brushless motor, which is linear decoded, high resolution, low length error, more stable.

AUTOMATIC FEEDING SYSTEM

Automatic feeding system to improve the precision of stepping media feeding. (Optional)

IMPORTED FLUORORUBBER PINCH ROLLER

lmported fluororubber pinch rollers, preventing static generated during printing and avoiding inkflying, printing is more accurate, and refusing wrinkle.

TOUCH LCD SCREEN DESIGN

This design with a high-end and sophisticated display for more intuitive operation.

CUTTING FUNCTION

Cuts the media after printing is completed.

Printer Details

DUAL-SLIDER STRUCTURE DESIGN

Dual-slider structure design ensures smoother carriage movement and improves printing precision.

AUTOMATIC CLEANING FUNCTION

Automatic cleaning function, customizable setting of time to wake up the printer for cleaning the printhead.

Specification

Model	SC1181/SC1182
Printhead	Type: Epson I3200-A1/E1 Quantity: 1/2pc Resolution: 3200DPI
Printing Speed	1 printhead: Production Mode: 20㎡/h Standard Mode: 15㎡/h
	2 printheads：Production Mode: 40㎡/h Standard Mode: 30㎡/h

Ink Type	Eco-solvent Ink, Water-based Ink
Ink Color	CMYK
Print Width	1800mm
Print Media	Indoor Advertising Material, PP, Vinyl, Flex Banner, Canvas Banner, etc.
Media Feeding Method	Roll to Roll, Leaf
Image Format	JPG, TIF, BMP, PDF, etc.
RIP Software	MAIN TOP, PHOTOPRINT, ONYX, Riin
Computer System	Win7 and above Data Transmission Port: Giga-bit Ethernet Port Hard Disk: 500G or more RAM:8G DDR4 or above CPU: Intel Core i7 3.0HZ above
Power Supply	50HZ/60HZ, 220V, Machine Printing Power: 2KW Dryer: 2.4KW
Temp.	15-30℃
Humidity	35%-65%
Machine Size	Dimension: 28007601480mm Packing: 3148740750mm
Weight	Gross Weight: 235KG NetWeight: 180KG
Printhead cleaning	Automatic Cleaning, Automatic Flash Spray MoisturizingFunction
