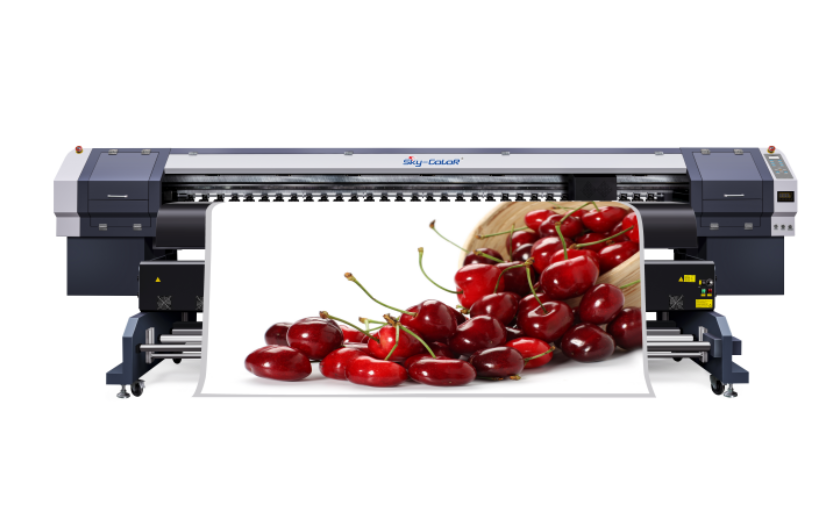

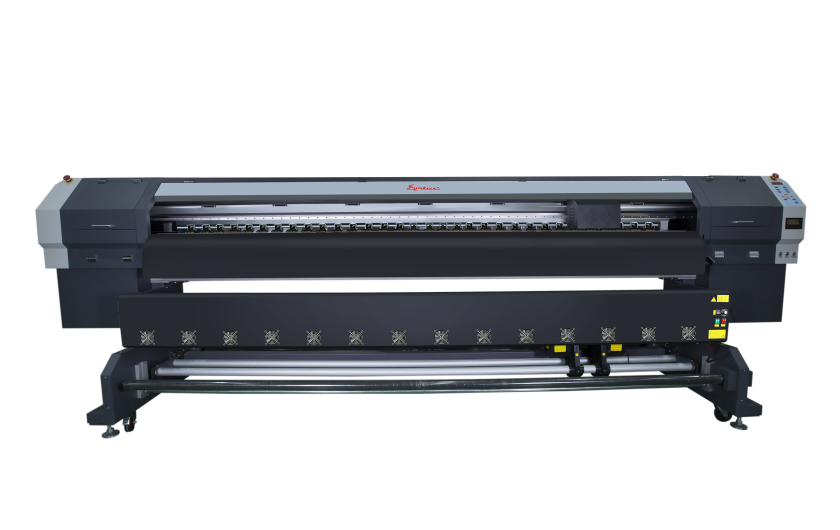

Skycolor 3.2m with 2/4 Heads Eco Solvent Printer

Feature

Epson I3200-E1 Head

2/4pcs printhead are optional, which can effectively improve printing speed.

Leadshine Motor

Professional brushless motor, with sufficient power, low noise and long service life.

Auto Skip White Function

Automatically skip when printing, save printing time and ink, and reduce costs.

Front Heating System

Intelligent heating system, drying ink quickly, and the material can be wound faster.

Printer Details

Secondary Ink Supply System

Combination of large ink cartridges and secondary ink cartridges is used to ensure smooth supply of ink.

High-precision Platform

The platform has high flatness and small error, ensuring printing quality and reducing damage rate.

Paper Take-up System

Automatic paper take-up system, the winding speed is moderate, the winding is neat, and it is convenient for storage.

Moisturizing Capping Station

Lifting capping station, automatic nozzle cleaning, flash and moisturizing, to ensure printheads are in good condition.

Specification

Model	SC-320TS Eco Solvent Printer
Printhead	Type:Epson I3200-E1 Resolution:3200DPI Head Clean: Auto Cleaning, Flash and Moisturizing
Quantity	2	4
Printing Speed	2pass 80㎡/h	2pass 139㎡/h
	3pass 55㎡/h	3pass 108㎡/h
	4pass 42㎡/h	4pass 79㎡/h
	6pass 30㎡/h	6pass 54㎡/h
Printing Width	3200mm
Ink Type	Eco-solvent Ink,Water-based Ink
Ink Color	CMYK
Height of Head Print	2-5 mm (Variable)
Print Media	PP PVC,Vinyl,Backlit,Mesh,etc
Media Feeding Method	Roll to Roll, Leaf
Color Management	ICC Based, Density & Curves Adjustment
RIP Software	MAIN TOP, PHOTOPRINT, ONYX
Optional Device	Heat System: Extra Dryer Device Take-up System: Auto
Computer System	Windows7 Windows8 Windows10 Data Transmission Port: Giga-bit Ethernet Port Hard Disk: More than 500G, ATI Mobility Radeon,Memory 4G or above, CPU: Intel 4 i5 processor or above
Power Supply	50HZ/60HZ, 220V, 10A
Temp.	15-30℃
Humidity	35%-65%
Machine Size	466510001525mm
Package Size	4815*1100-1650mm
Weight	750kg

2/4 Head SC-320TS
